Our manual UNI drip feed oilers

Type UNI-V
drip feed oilers

DIN 3401
pickled brass
with a regulating spindle for precise drop dosing
instant cut-off
brass dust cover secured by a chain
vase glass* in acrylic glass or natural glass
good visual inspection of the drop fall

Temperature range

Acrylic glass with NBR (standard) seals: -30°C to + 70°C
Natural glass with FPM (Viton) seals: -30 to + 180°C

* Please check the compatibility of your medium with NBR, FPM and acrylic glass. Contact the manufacturer or your medium dealer.

Type	Connection thread**	h	h vase glass	w	Capacity
UNI-V 32	G⅛ G¼	110	41	32	20ml
UNI-V 40	G⅛ G¼	120	48	40	35ml
UNI-V 50	G⅛ G¼	120	55	50	70ml
UNI-V 60	G¼ G⅜AG-G⅛IG G½AG-G¼IG	143	72	60	125ml
UNI-V 80	G¼ G⅜AG-G⅛IG G½AG-G¼IG	173	95	80	315ml

** Special threads on request

Type UNIKUM
the nostalgic drip feed oiler

The UNIKUM is a replica of a historical drip feed oiler with tradition. It is still used in connection with steam pumps and motors, tractors, Oldtimers and antique machines and is perfect for museums and collectors.

DIN 3401
pickled brass
acrylic glass oder natural glass
with rotatable filling bowl
rotation spindle with momentum stop
viewing window for better regulation and control of the dripping

Type	Conn. thread*	h	h vase glass	w	Capacity
UNIKUM 32	G¼, G⅜	109	42	32	20ml
UNIKUM 40	G¼, G⅜	119	48	40	35ml
UNIKUM 50	G¼, G⅜	135	55	50	70ml
UNIKUM 60	G⅜, G½	151	72	60	125ml
UNIKUM 70	G½, G¾	166	85	70	200ml
UNIKUM 80	G½, G¾	191	95	80	315ml
UNIKUM 90	G¾	204	110	90	450ml
UNIKUM 100	G¾	224	120	100	620ml
UNIKUM 110	G¾	254	140	110	875ml
UNIKUM 125	G1	272	155	125	1300ml
UNIKUM 140	G1		155	140	1850ml

** Special threads on request

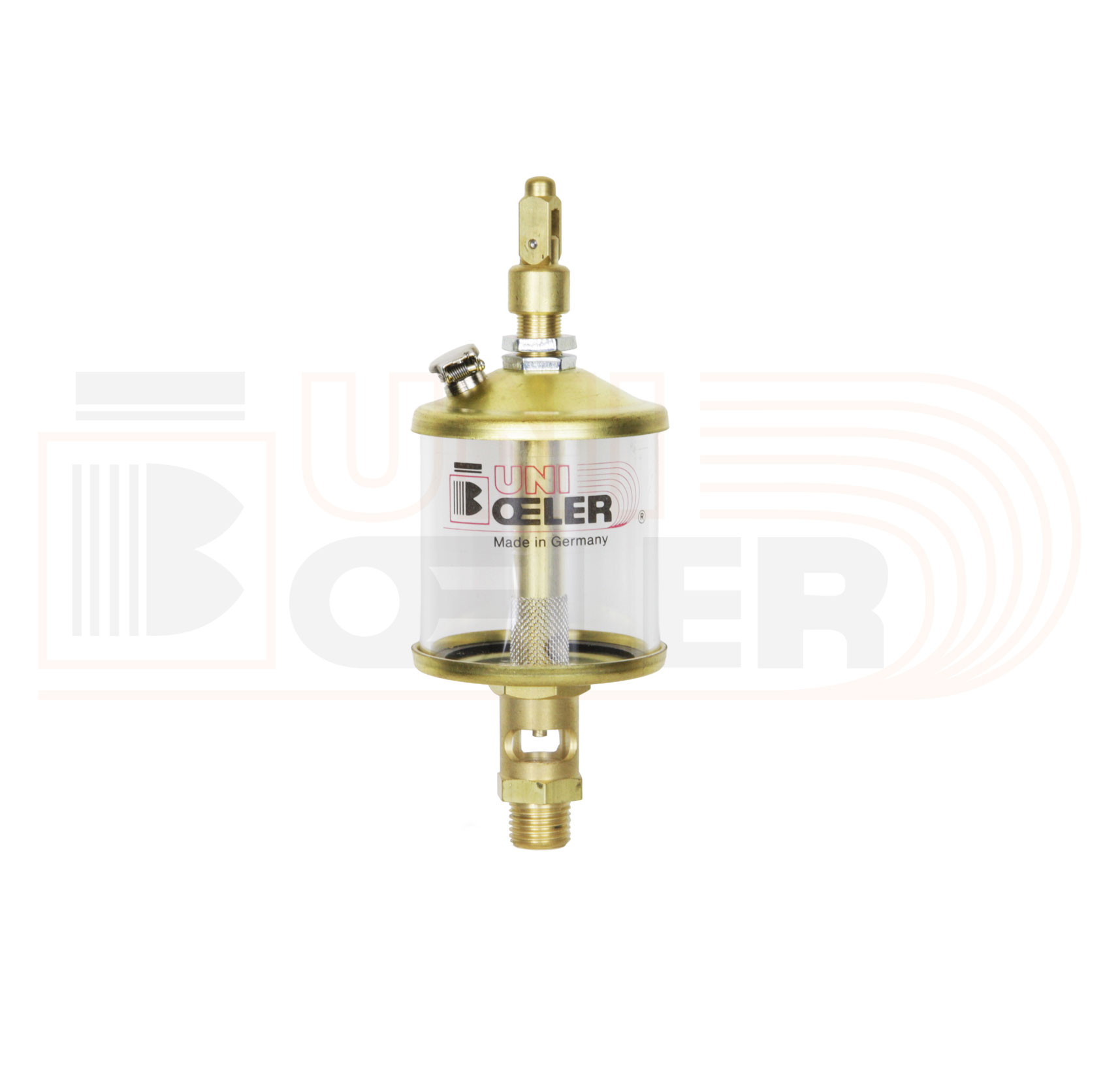

Type UST
drip feed oilers

pickled brass
with a regulating spindle for precise drop dosing
instant cut-off
dust- and splash-proof finish with a hinged cover
viewing glass* in acrylic glass or natural glass
good visual inspection of the drop fall

Temperature range

Acrylic glass with NBR (standard) seals: -30°C to + 70°C
Natural glass with FPM (Viton) seals: -30 to + 180°C

* Please check the compatibility of your medium with NBR, FPM and acrylic glass. Contact the manufacturer or your medium dealer.

Type	Conn. thread**	h	h viewing glass	w	Cap.
UST 30	G⅛ G¼	97	30	30	20ml
UST 40	G⅛ G¼	110	36	40	35ml
UST 50	G⅛ G¼	126	50	50	84ml
UST 60	G⅛ G¼ G⅜AG-G⅛IG G½AG-G¼IG	140	60	60	140ml
UST 60x80	G⅛ G¼ G⅜AG-G⅛IG G½AG-G¼IG	160	80	60	200ml
UST 80x100	G⅛ G¼ G⅜AG-G⅛IG G½AG-G¼IG	185	100	80	500ml
UST 100x120	G⅛ G¼ G⅜AG-G⅛IG G½AG-G¼IG	210	120	100	1000ml

** Special threads on request

Type TOL
drip feed oilers

nickel-plated brass
with a lateral regulating spindle for precise drop dosing
extra low design
instant cut-off
dust- and splash-proof finish with a hinged cover
viewing glass* in acrylic glass or natural glass
good visual inspection of the drop fall

Temperature range

Acrylic glass with NBR (standard) seals: -30°C to + 70°C
Natural glass with FPM (Viton) seals: -30 to + 180°C

* Please check the compatibility of your medium with NBR, FPM and acrylic glass. Contact the manufacturer or your medium dealer.

Type	Conn. thread**	h	h viewing glass	w	Cap.
TOL 25	M8, M10x1 G⅛, G¼	65	25	25	7ml
TOL 30	M8, M10x1 G⅛, G¼	71	30	30	14ml
TOL 40	G ¼, G ⅜, G ½	90	40	40	36ml
TOL 50	G ¼, G ⅜, G ½	107	50	50	84ml
TOL 60	G ¼, G ⅜, G ½	120	60	60	140ml
TOL 60x80	G ¼, G ⅜, G ½	140	80	60	200ml

** Special threads on request
